LY-511 Steam Spot Cleaner Manufacturer for Private-Label Cleaning Brands
A differentiated 4-mode upholstery and carpet cleaner combining room-temperature extraction, hot-water cleaning, steam treatment and dry-ironing support in one OEM-ready platform.
MOQ from 1,000 units ยท Sample available ยท CE, EMC and RoHS certificateยท private-label support
4 Modes
Cleaning
What Is the LY-511 Steam Spot Cleaner?
The LY-511 is a portable carpet and upholstery spot cleaner developed for private-label and OEM appliance brands. It combines room-temperature water, hot-water, steam and dry-ironing modes with an 18kPa extraction system. The machine uses separate 2.2L clean-water and 1.2L dirty-water tanks and includes a dedicated tool for flushing the internal hose after use.
Best suited for:
Sofas, upholstery, carpets, stairs, car interiors, mattresses and localized fabric stains.
Buyer type:
Brand owners, importers, distributors, retailers and ecommerce appliance sellers.
Business value:
A multi-mode platform that helps buyers differentiate their range from conventional cold-water spot cleaners.

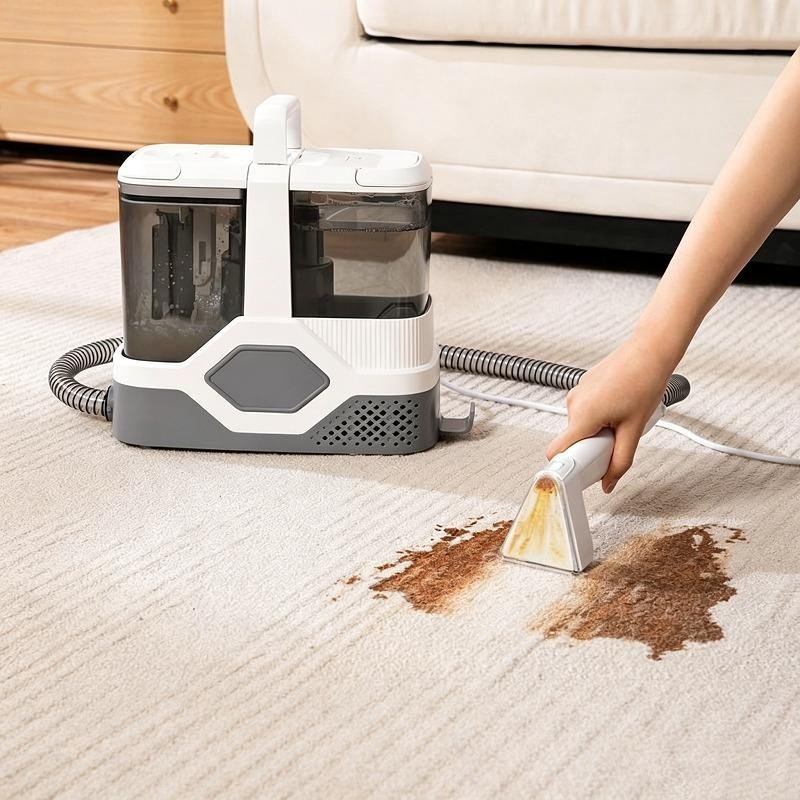

Four Fabric-Care Modes. One OEM Platform.
Add hot water, steam and dry-ironing functions to create a clearer premium product story for your market.
Room-Temperature Extraction
Immediate cleaning for routine spills, sofas, carpets and car interiors.
Hot-Water Cleaning
Ready in about 15 seconds and reaches 60ยฑ10ยฐC under specified test conditions.
Steam Treatment
Ready in about 30 seconds to help loosen stubborn residue before extraction.
Dry-Ironing Mode
Adds a fabric-care function for approved textiles and compatible accessories.
Broader Use Cases
Clear Premium Positioning
One OEM-Ready Platform
Performance data are based on specified test conditions. Always follow the approved manual and fabric-care labels when using hot water, steam or dry ironing.
Spray, Agitate and Extract in Three Steps

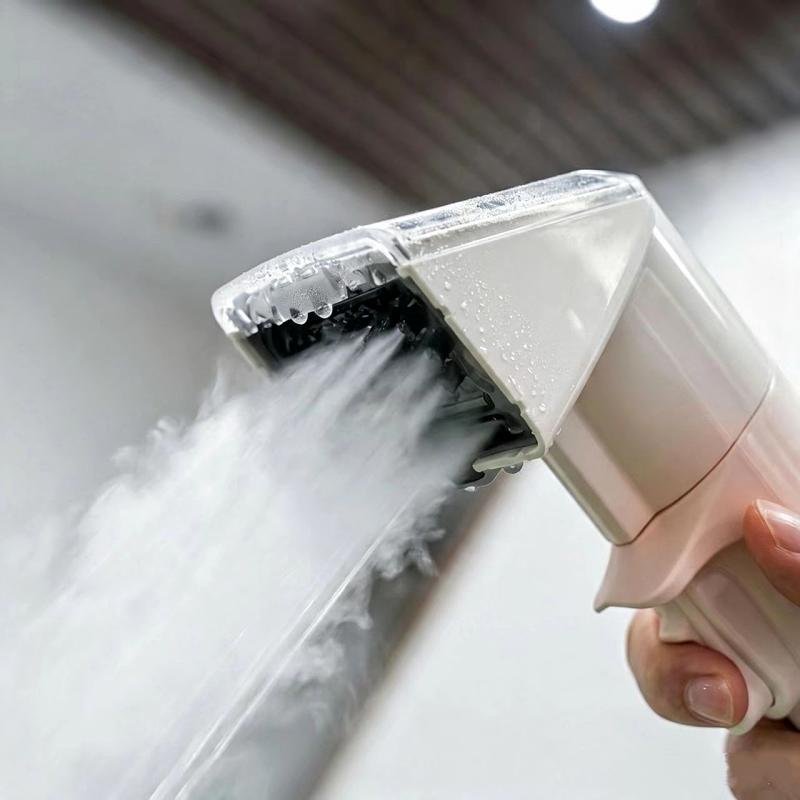

Spray
Apply room-temperature water, hot water or steam to the stained area.

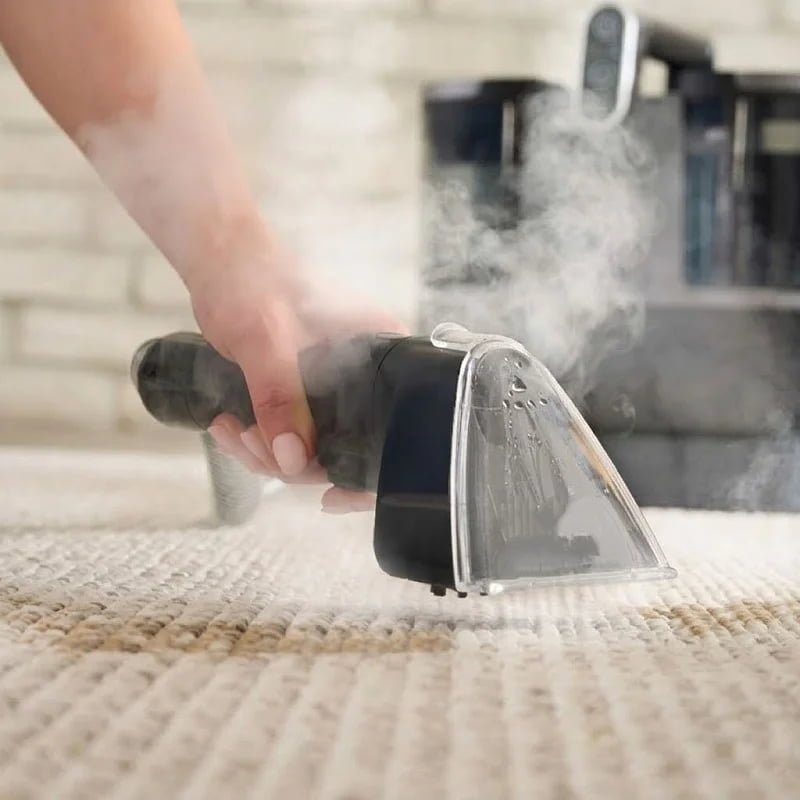

Agitate
Use the selected brush to loosen dirt from the fabric surface.

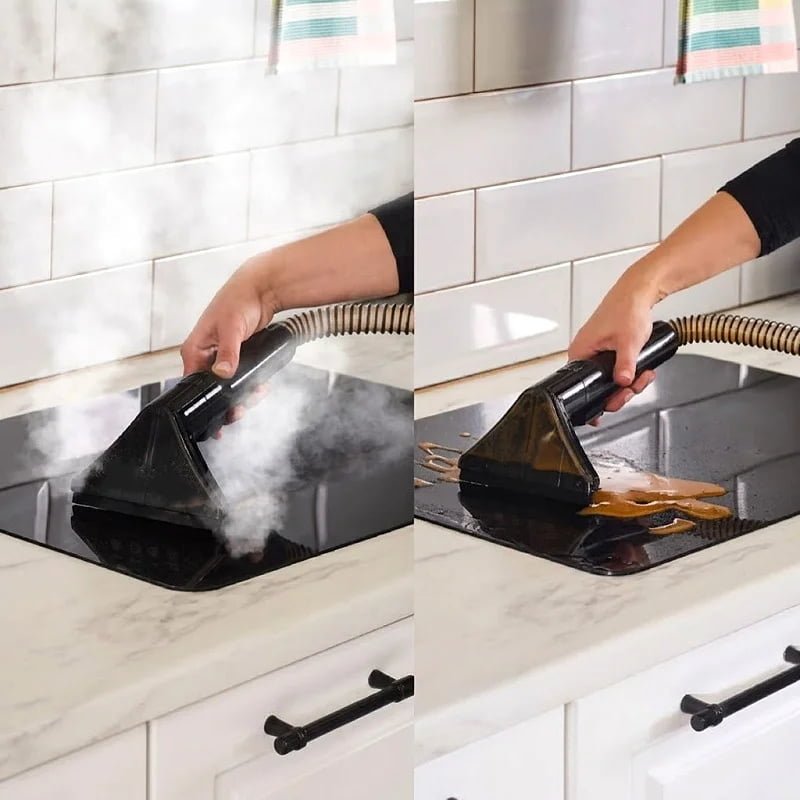

Extract
The 18kPa suction system draws dirty water into the separate waste-water tank.
Important Usage Note
LY-511 is not designed as a dry-debris vacuum cleaner. Remove large dry debris before use. Spray water or steam first, then extract the dirty water.
One Platform for Multiple Cleaning Applications
Always check the care label and test an inconspicuous area before applying hot water or steam to sensitive materials.

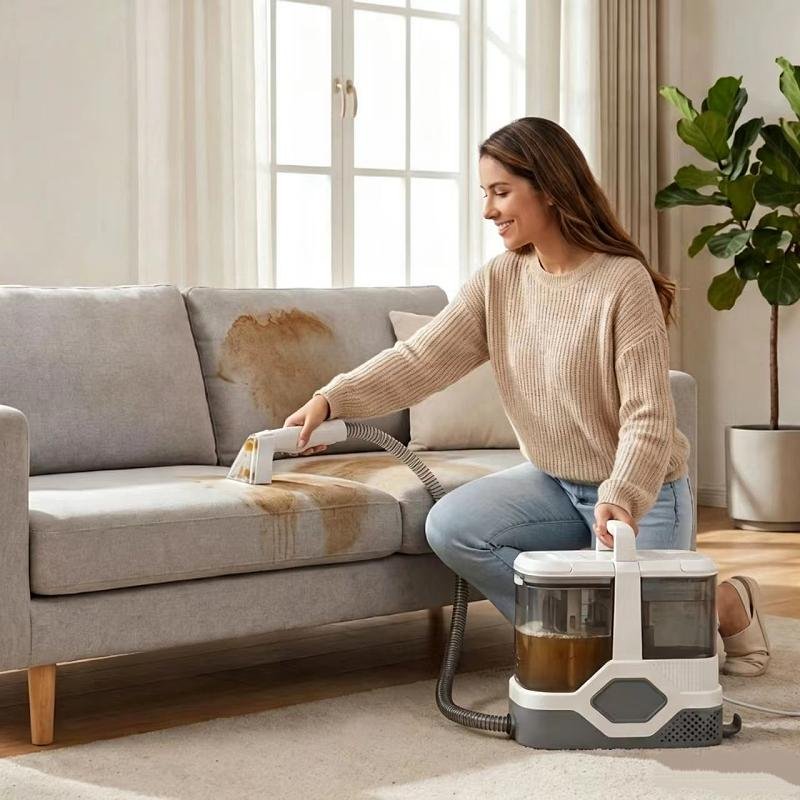

Sofas & Upholstery
Revitalize fabric furniture with deep extraction cleaning
Carpets & Area Rugs
Restore carpets to like-new condition with powerful suction
Car Seats & Interiors
Keep vehicle interiors fresh and spotless effortlessly

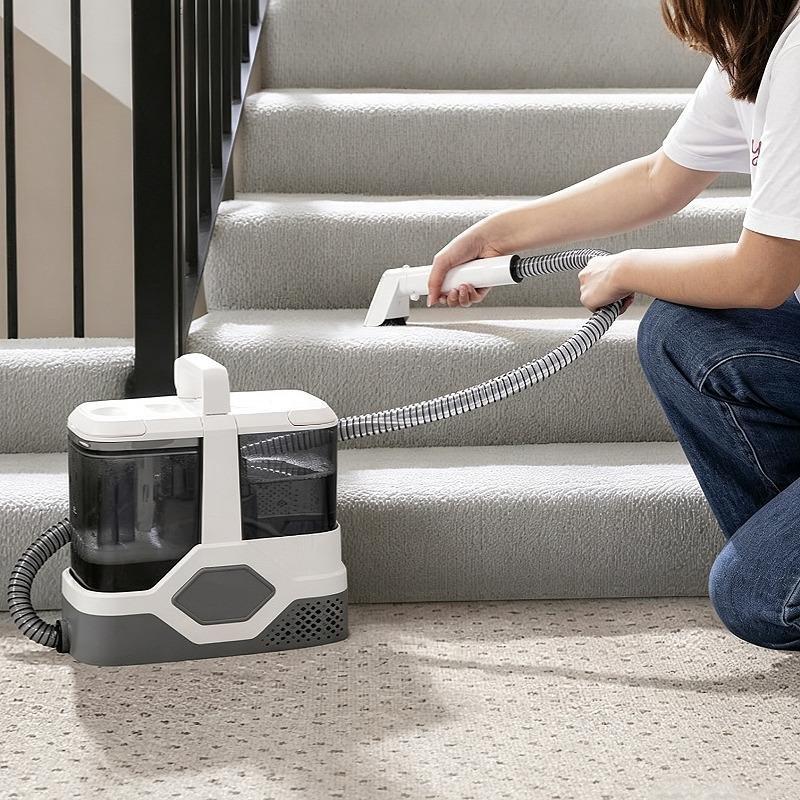

Stairs
Maneuver tight spaces with ease and precision

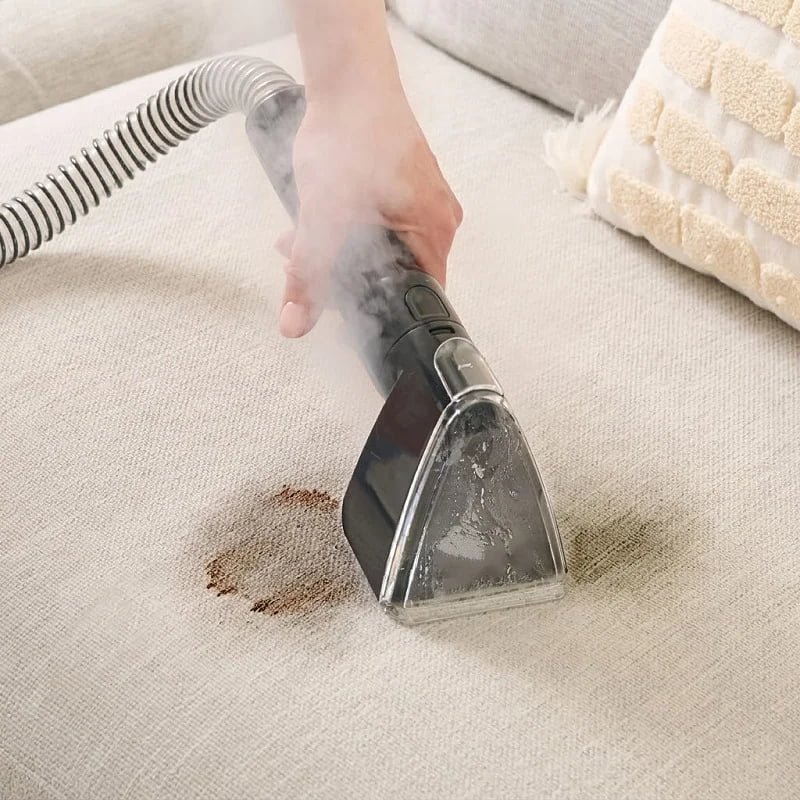

Mattresses
Ensure hygienic sleep surfaces free from allergens
Pet-Related Stains
Tackle tough pet messes and eliminate odors completely
Selected Hard Surfaces
Versatile cleaning for sealed hard floors and tiles
Window Cleaning
Achieve crystal-clear windows with streak-free results
Designed for Cleaner Operation
and Easier Maintenance
2.2L Separate Clean-Water Tank
Keeps fresh cleaning water separate from collected wastewater.
1.2L Dirty-Water Tank
Allows collected liquid and residue to be removed without contaminating the clean-water supply.
Dedicated Hose Self-Cleaning Tool
Connect the tool to the hose handle and run the spray-and-extraction system to flush the internal path.
Detachable Hose
The removable hose can be rinsed directly after the machine has cooled completely.
Maintenance Tip
After cleaning, continue extraction for approximately 10 seconds to draw residual water from the hose into the dirty-water tank.

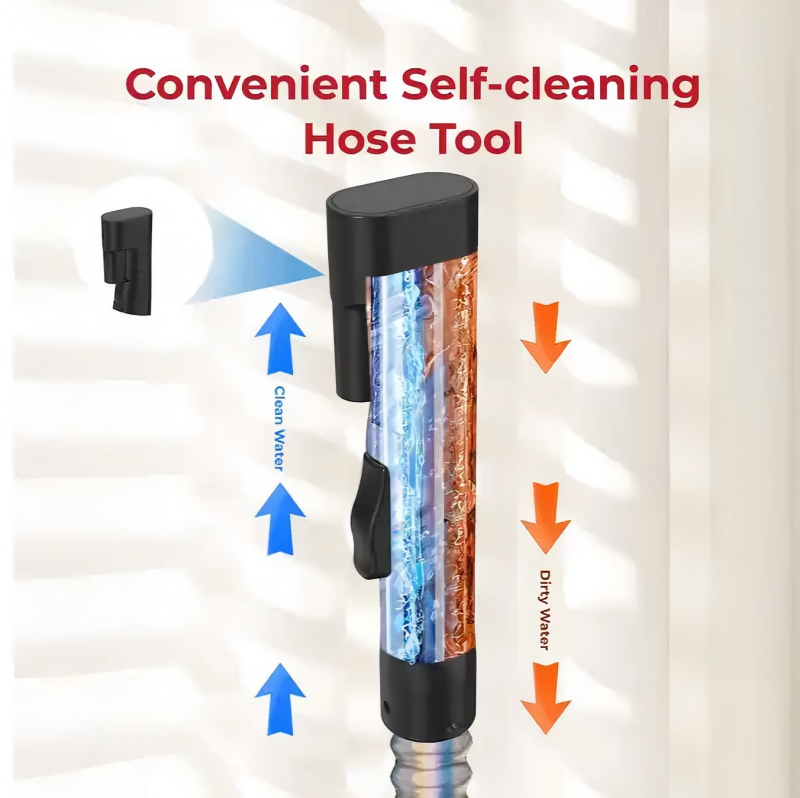

How the LY-511 Hose Self-Cleaning System Works
View this demonstration to see how our innovative self-cleaning mechanism keeps your hose hygienic and ready for the next use with minimal effort.
View Image Description
Step 1: The LY-511 features a dedicated hose self-cleaning tool designed to maintain optimal hygiene.
Step 2: Simply attach the self-cleaning tool to the hose handle. Ensure it clicks securely into place.
Step 3: Activate the spray-and-extraction system. Fresh water flushes through the internal hose path while powerful suction removes debris and residual dirt.
Step 4: After the cycle completes, detach the hose and allow it to air dry. Your LY-511 is now ready for the next cleaning session with a hygienically maintained hose system.
Standard Tools for Different Cleaning Areas
Versatile attachments designed for comprehensive steam cleaning coverage

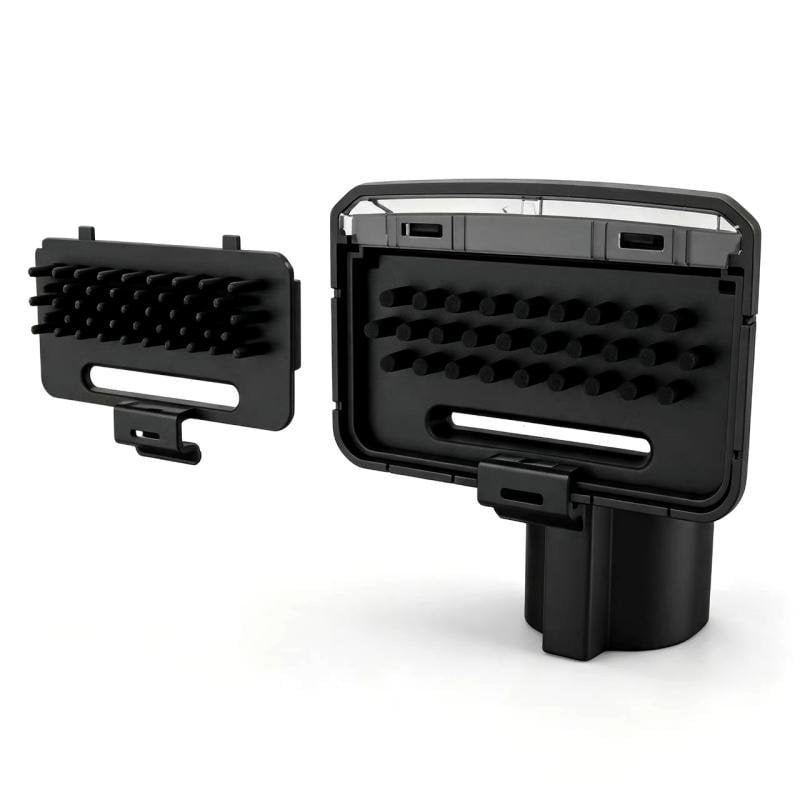

9.2cm Steam Standard Brush
For localized stains, car seats and smaller upholstery areas.
14.1cm Steam Wide Brush
For sofas, cushions and broader fabric surfaces.
5.8cm Self-Cleaning Tool
For flushing the internal hose after use.
Complete Package List
LY-511 Technical Specifications
Engineered for professional-grade performance and reliability
| Parameter | Specification |
|---|---|
| Product Type | Carpet and Upholstery Steam Spot Cleaner |
| Rated Voltage | 220-240V, 50/60Hz |
| Total Power | 2100W |
| Motor Power | 600W |
| Heating Power | 1500W |
| Vacuum Level | 18kPa |
| Hot-Water Temperature | 60ยฑ10ยฐC |
| Steam Temperature | Approx. 100ยฐC |
| Hot-Water Preparation | Approx. 15 seconds |
| Steam Preparation | Approx. 30 seconds |
| Clean-Water Tank | 2.2L |
| Dirty-Water Tank | 1.2L |
| Hose Length | 1.2m |
| Power Cord Length | 3.5m |
| Noise | โค85dB |
| Waterproof Level | IPX4 |
| Dimensions | 381.14 ร 223.66 ร 345.12mm |
| Operating Temperature | 5-35ยฐC |
| Motor Lifespan | โฅ300 hours |
| Heating Element Lifespan | โฅ300 hours |
Specifications are based on the current engineering configuration and may be adjusted for approved OEM projects. Contact LIYYOU for final production specifications.
Ready for Sample Evaluation and Private-Label Projects
LY-511 is available for sample evaluation and OEM/private-label development. The final commercial configuration will be confirmed according to the target market, voltage, plug, certification, accessories and packaging requirements.
| Project Item | Details |
|---|---|
| Standard MOQ | From 1,000 units |
| Sample Lead Time | Approximately 7 working days |
| Production Lead Time | Approximately 40 days after deposit and artwork approval |
| Rated Voltage | 220-240V, 50/60Hz |
| Plug Options | EU, UK, AU and other approved configurations |
| Branding | Logo, color, control panel, manual and retail packaging |
| Project Type | OEM, ODM and private-label programs |
Final MOQ and lead time depend on the approved product configuration and order requirements.
Configure the LY-511 for Your Target Market
| Market Requirement | Available Support |
|---|---|
|
Voltage and Frequency
|
220-240V, 50/60Hz |
|
Plug Type
|
EU, UK, AU and other approved options |
|
Control Panel
|
Localized language and icon configuration |
|
User Manual
|
Local-language manual support |
|
Retail Packaging
|
Customized artwork and market information |
|
Certification Documents
|
Based on the approved configuration |
|
Spare Parts
|
Project-specific spare-parts recommendation |
From Approved Sample to Repeatable Mass Production
Before mass production, the approved sample, technical specifications, key components, accessories and packaging requirements are converted into project-controlled production documents.
Golden Sample Control
The approved sample is retained as the reference for product appearance, functions, accessories and workmanship.
Critical Component Control
Key components such as the motor, heating element, thermostat, water pump, hose and water tanks are controlled according to the approved specification.
Engineering Change Control
Changes affecting product performance, appearance or compliance are reviewed before implementation and communicated according to the agreed project procedure.
Pre-Shipment Verification
Finished-product function, appearance, accessories, packaging and shipping marks are checked before shipment.
Spare Parts and After-Sales Support for Long-Term Programs
For distributor and private-label projects, LIYYOU can prepare a recommended spare-parts list according to the order quantity, sales channel and warranty policy.
Available Spare Parts
- Motor assembly
- Heating element and thermostat
- Water pump and valve components
- Clean-water and dirty-water tanks
- Hose assembly
- Brushes and cleaning tools
- Filters, seals and connecting parts
Technical Documentation
- Exploded-view diagram
- Spare-parts list with part numbers
- Troubleshooting guide
- Recommended spare-parts ratio
Contact your LIYYOU account manager to discuss spare-parts planning and after-sales documentation requirements for your specific project.
Contact Sales Team
Build the LY-511 for Your Brand
and Target Market
LIYYOU supports brand owners and importers in evaluating product configuration, market compliance, branding and retail presentation before mass production.
Custom Logo
Your brand identity on product housing, control panel, and packaging materials.
Product Color
Custom color matching for housing and accessories to align with your brand palette.
Plug and Voltage
Configuration for your target market standards: EU, US, UK, AU and other regional requirements.
Control Panel Language
Button labels and display text localized for your target consumers.
Retail Packaging
Custom color box design with your brand messaging, claims and compliance labeling.
User Manual and After-Sales Materials
Localized instructions, warranty cards and support documentation for end consumers.
Note: We do not display existing customers' logos, packaging designs, or barcodes. All OEM/ODM projects are treated with strict confidentiality.
OEM Project Process
Market Requirement
Define target market and product needs
Configuration Review
Technical feasibility assessment
Quotation
Detailed pricing and MOQ
Sample and Testing
Prototype validation and certification prep
Artwork Approval
Package and branding finalization
Pilot Production
Small batch for quality verification
Mass Production
Full-scale manufacturing and delivery
Why Work With LIYYOU?
Founded
Over a decade of vacuum cleaner industry expertise
Production Lines
Annual capacity of 5 million units
Self-Developed Models
Proprietary product designs and innovation
Patents
Protected intellectual property portfolio
OEM/ODM Projects
Successfully completed custom projects
Countries
Export experience worldwide
ISO9001, ISO14001 and BSCI
Management Systems
Certified quality, environmental and social compliance management
Certification Status
This product has obtained the following certifications:
- CE - European Conformity
- RoHS - Restriction of Hazardous Substances
- EMC - Electromagnetic Compatibility
LIYYOU also possesses the capability and experience to help clients obtain additional certifications such as CB, GS, REACH, FCC, UL, and ETL for specific models upon request.
Built-In Quality Control for More Consistent Bulk Orders
See how critical production-line checkpoints help verify the LY-511's water flow, steam output and core cleaning functions--reducing the risk of inconsistent performance, customer complaints and after-sales claims.
Critical Checks Before Shipment
Key functions are inspected at critical production stages to identify potential issues before shipment. This helps maintain more consistent performance across bulk orders and reduces the risk of defective units reaching your customers.
More Consistent Performance
Critical functions are checked to improve consistency across production batches.
Lower After-Sales Risk
Potential functional issues are identified before products reach your market.
Better Brand Protection
More reliable product quality helps reduce complaints, returns and damage to your brand reputation.
LY-511 Steam Spot Cleaner FAQ
Is the LY-511 a dry vacuum cleaner?
No. LY-511 is designed to spray water or steam onto a surface and then extract the dirty water. Large dry debris should be removed before cleaning.
How long does the LY-511 take to prepare hot water?
Hot water is prepared in approximately 15 seconds under the specified test conditions.
How long does steam preparation take?
Steam is prepared in approximately 30 seconds under the specified test conditions.
What is the suction level?
The current LY-511 engineering specification provides an 18kPa vacuum level using a 600W wet-and-dry motor.
How does the hose self-cleaning system work?
Connect the dedicated self-cleaning tool to the hose handle, start the machine and activate the spray function while holding the handle vertically. The circulating water helps flush residue from the internal path.
Can the product color, logo and packaging be customized?
Yes. LIYYOU can evaluate product color, logo, control-panel language, plug, packaging and manual customization according to the target market and projected order quantity.
Can LY-511 be supplied with market-specific certification?
Certification requirements are evaluated according to the destination market, product configuration and applicable standards. Contact LIYYOU for a project-specific compliance review.
Can cleaning detergent be used?
The approved detergent type and concentration must be confirmed according to the final configuration and user manual. Contact LIYYOU before making detergent claims in retail materials.
Does the machine stop automatically when the dirty-water tank is full?
This feature must be confirmed against the final production configuration. Do not include an automatic-stop claim in retail materials without written confirmation.
How can I request a sample?
Submit your company, target market, expected quantity and certification requirements. LIYYOU will review the required configuration and prepare a sample proposal.
What is the MOQ for an OEM project?
The standard OEM MOQ starts from 1,000 units. The final MOQ depends on the selected color, plug, packaging and customization requirements.
How long does sample preparation take?
A standard sample can normally be prepared in approximately 7 working days after the configuration and sample payment are confirmed.
What is the mass-production lead time?
The standard lead time is approximately 40 days after receipt of the deposit and approval of the sample, artwork and technical specifications.
Which certifications are available?
CE, EMC and RoHS documentation is available for the approved configuration. Certification applicability will be reconfirmed according to the destination market and final product configuration.
Can LIYYOU provide spare parts?
Yes. A recommended spare-parts list and ratio can be prepared according to the order quantity, sales channel and warranty policy.
Can we change components after sample approval?
Any change affecting product performance, appearance or compliance should be reviewed and confirmed through the agreed engineering-change procedure.
What information is required for a quotation?
Please provide your target market, expected quantity, voltage, plug, required certification, preferred accessories, branding and packaging requirements.
