OEM / PRIVATE LABEL UPRIGHT CARPET CLEANER LY-X3 PRO Upright Steam Carpet Cleaner Manufacturer
A steam-assisted upright carpet cleaner combining up to 100°C steam, ≥17.5 kPa extraction, dual removable rollers and a 2.5 m upholstery hose--developed for appliance brands, retailers and distributors.
Sample Evaluation Available · OEM Packaging · Market-Specific Plug Options · Compliance Documents by Approved Configuration
*Steam temperature is based on internal testing. Actual temperature varies by measurement position and operating conditions.
Steam. Agitate. Extract. Dry.
Four coordinated steps turn sticky messes into a clear retail story.

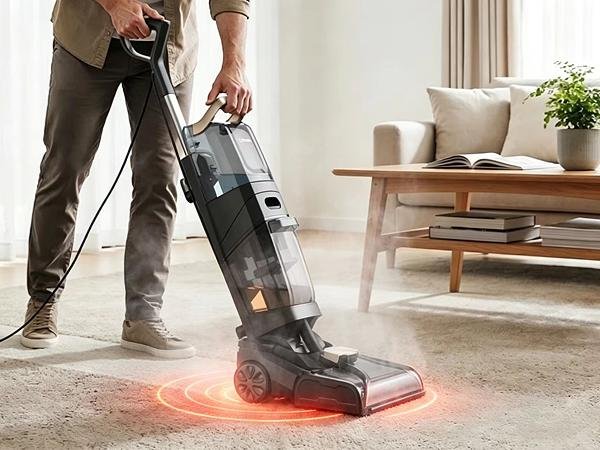

100°C Steam*
Helps loosen dried, greasy and sticky soil.

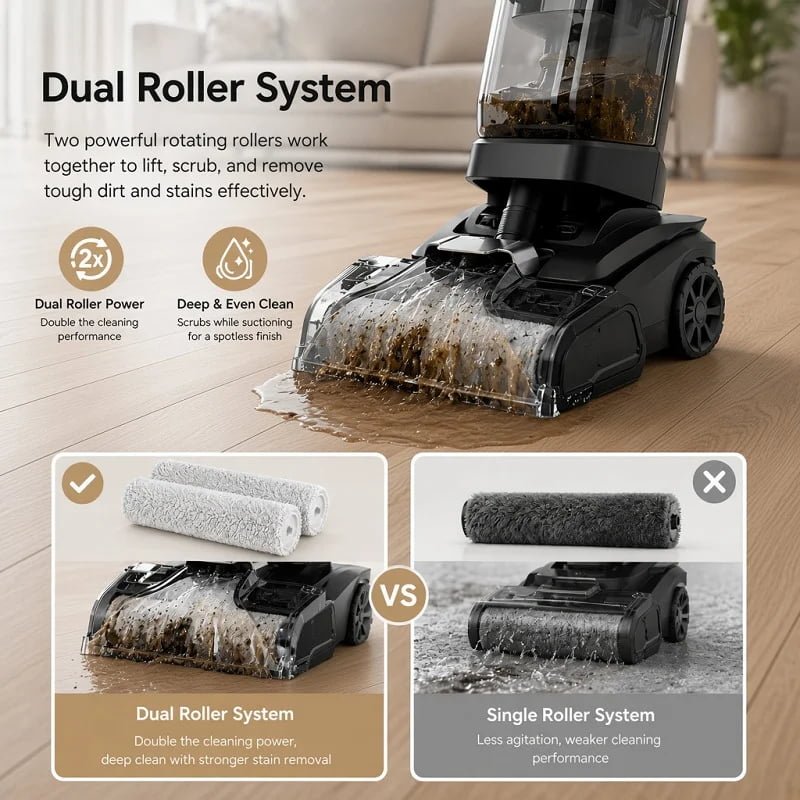

Dual Removable Rollers
Agitate carpet fibers and release embedded debris.
≥17.5 kPa Extraction
Pulls back dirty water and loosened particles.

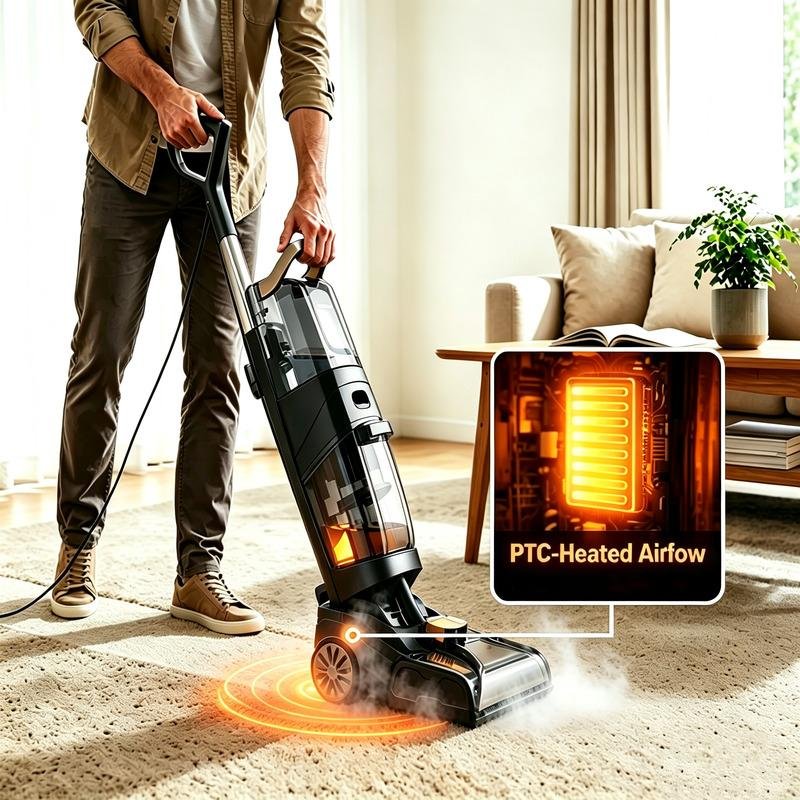

40W PTC Heated Air
Supports faster post-wash drying.
* Steam-assisted deep extraction technology
Why Buyers Position LY-X3 PRO Above
Entry-Level Carpet Washers
| Procurement Factor | Basic Upright Carpet Washer | LY-X3 PRO |
|---|---|---|
| Cleaning system | Water spray and extraction |
Steam-assisted spray, agitation and extraction
|
| Carpet brush | Conventional roller |
Dual removable rollers
|
| Steam function | Usually unavailable |
Up to 100°C under test conditions
|
| Upholstery cleaning | Model dependent |
2.5 m hose and wide upholstery tool
|
| Clean-water capacity | Model dependent |
4.0 L
|
| Hard-floor option | Model dependent |
Optional cleaning pad set
|
| Private label | Supplier dependent |
Logo, color, packaging, manual and plug options
|
Performance Your Team
Can Verify Before the PO
LY-X3 PRO Steam Readiness Test
See how LIYYOU verifies the LY-X3 PRO upright steam carpet cleaner through cold-start timing and real-time temperature measurement before sample approval or an OEM purchase order.

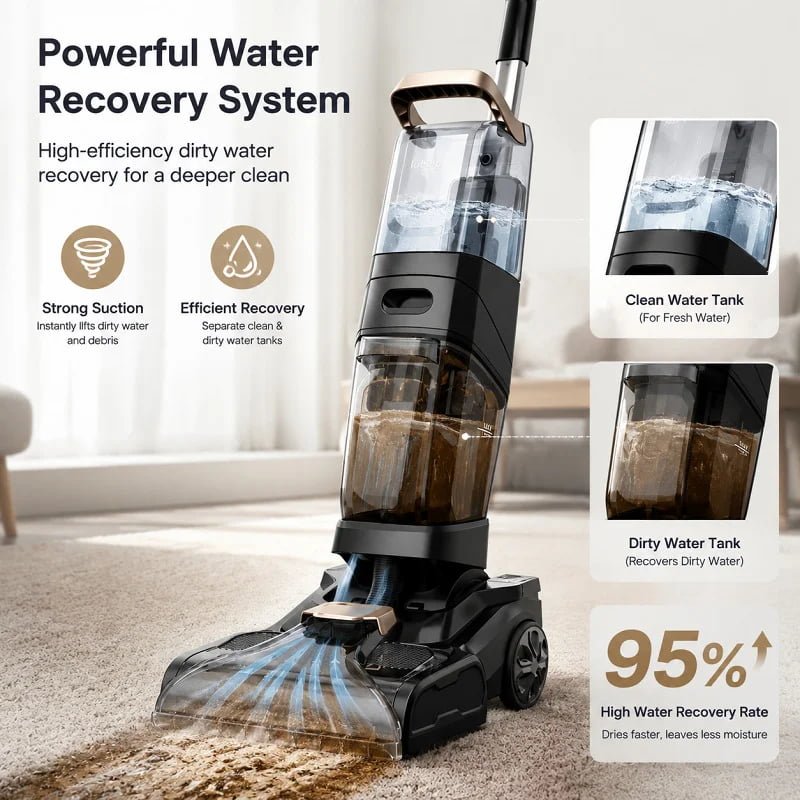

LY-X3 PRO Water Extraction Test
Compare input water volume, recovered water volume, and carpet weight before and after cleaning. LIYYOU's three-point measurement method provides visible moisture extraction evidence before sample approval or an OEM purchase order.
LY-X3 PRO Roller Brush & Clutch Test
Verify roller brush engagement, clutch disengagement and suction-only airflow performance. This live LIYYOU test demonstrates operating-mode control before sample approval or an OEM purchase order.
One Platform, Three Sellable Cleaning Stories
From deep carpet care to upholstery and optional hard floors -- one machine, multiple revenue streams.
Deep Carpet Cleaning
Steam, spray, dual-roll agitation and extraction for room-scale carpet care.
Upholstery & Stairs
Use the 2.5m hose and wide upholstery tool for sofas, stairs and localized stains.
Selected Sealed Hard Floors
Add the hard-floor pad set for compatible sealed surfaces.
Check floor-care instructions before use. Not suitable for unsealed wood or all fabric types.
Ready to Build Your Private Label?
From concept to production, we ensure every touchpoint reflects your brand perfectly with one unified product definition.
* ODM structure or BOM changes subject to engineering validation and project MOQ
Designed Around the Problems
That Drive Returns
User-focused maintenance features that address leakage, reduced suction, roller jamming and cleaning difficulties.

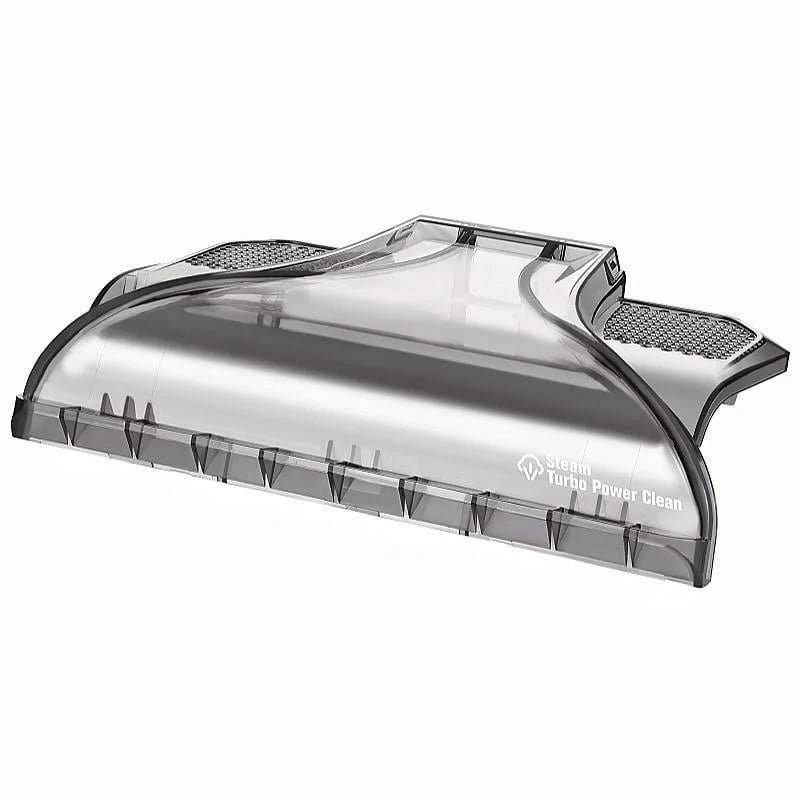

Removable Clear Nozzle Cover
Detaches easily for rinsing and removal of trapped hair, dirt and cleaning residue.

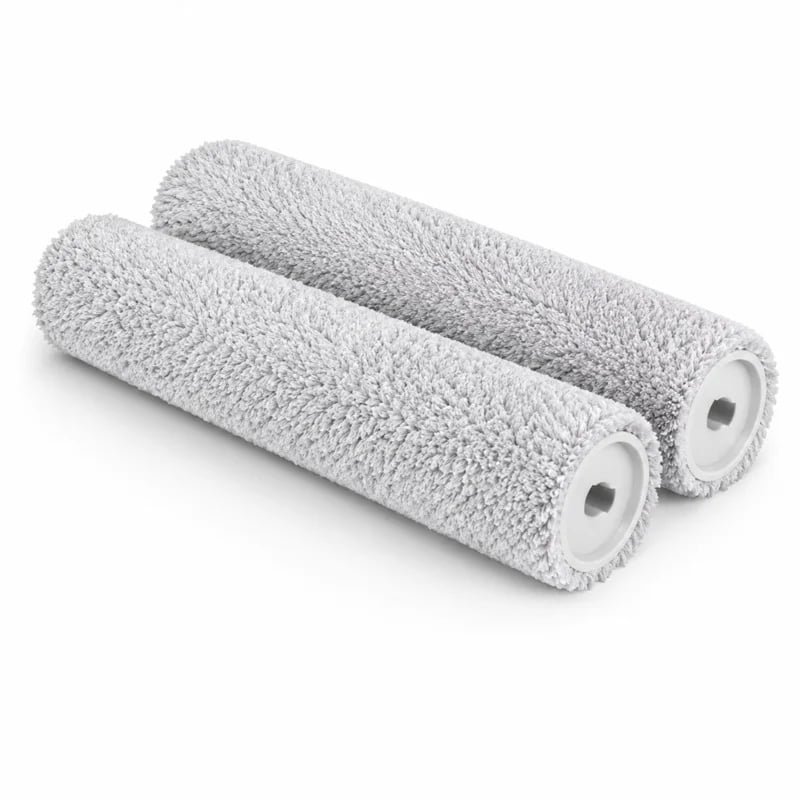

Detachable Dual Rollers
Simplify brush cleaning and replacement.
Separate Clean and Dirty Water Tanks
Make filling, emptying and rinse-out more straightforward.
Brush Roll Stop Control
Stops the floor rollers while maintaining suction--ideal for hose cleaning or when the machine remains stationary.
Build the Right X3 Pro Bundle for Your Sales Channel
Choose a retail-ready configuration based on your target price point, sales channel and cleaning applications. OEM packaging and accessory combinations are available.

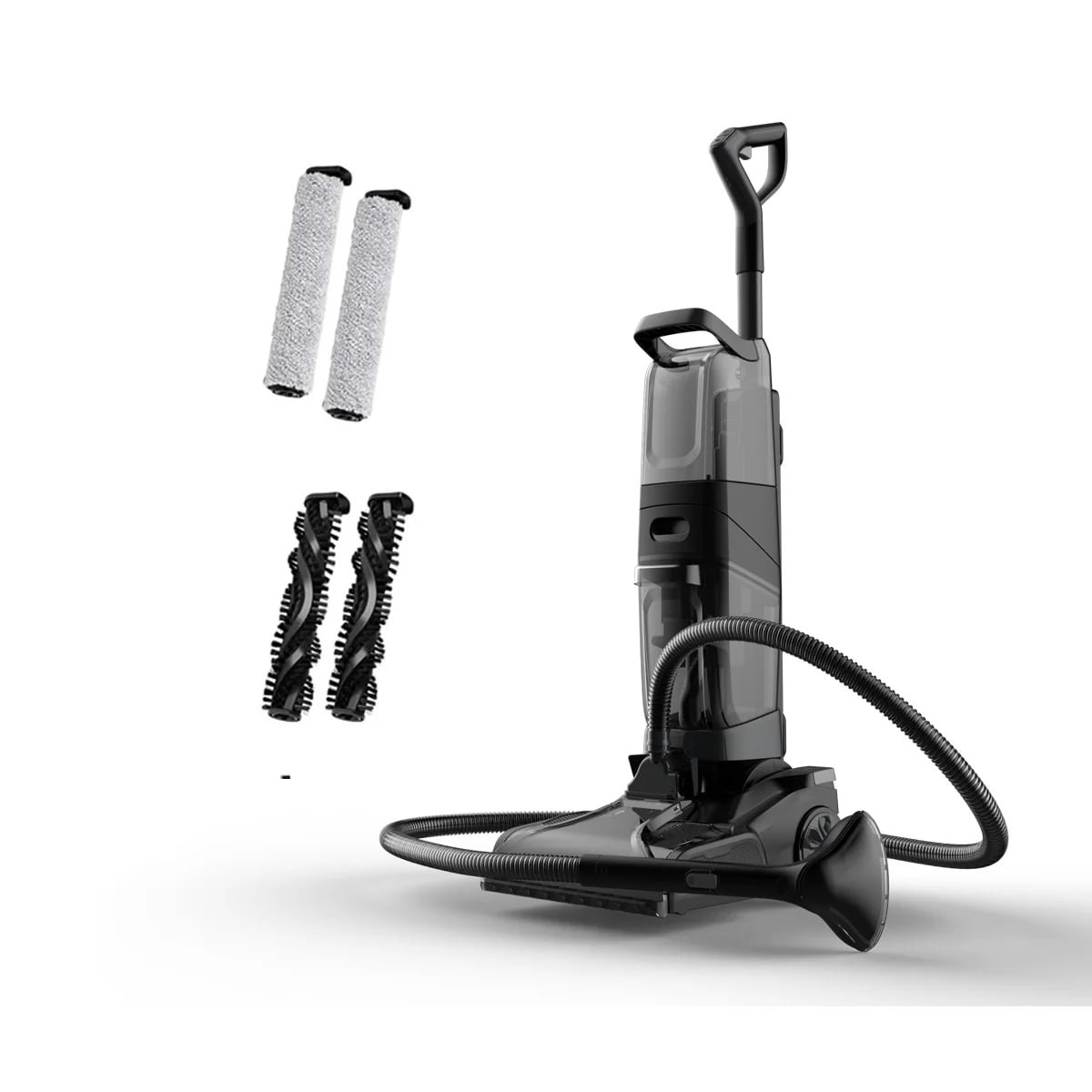

Multi-Surface Bundle
Included
- Everything in the Core Retail Bundle
- Hard-floor microfiber roller set
- Carpet brush roller set
Best for:
E-commerce and mainstream retail programs requiring carpet, hard-floor and upholstery cleaning.
Optional upgrade: Window cleaning tool

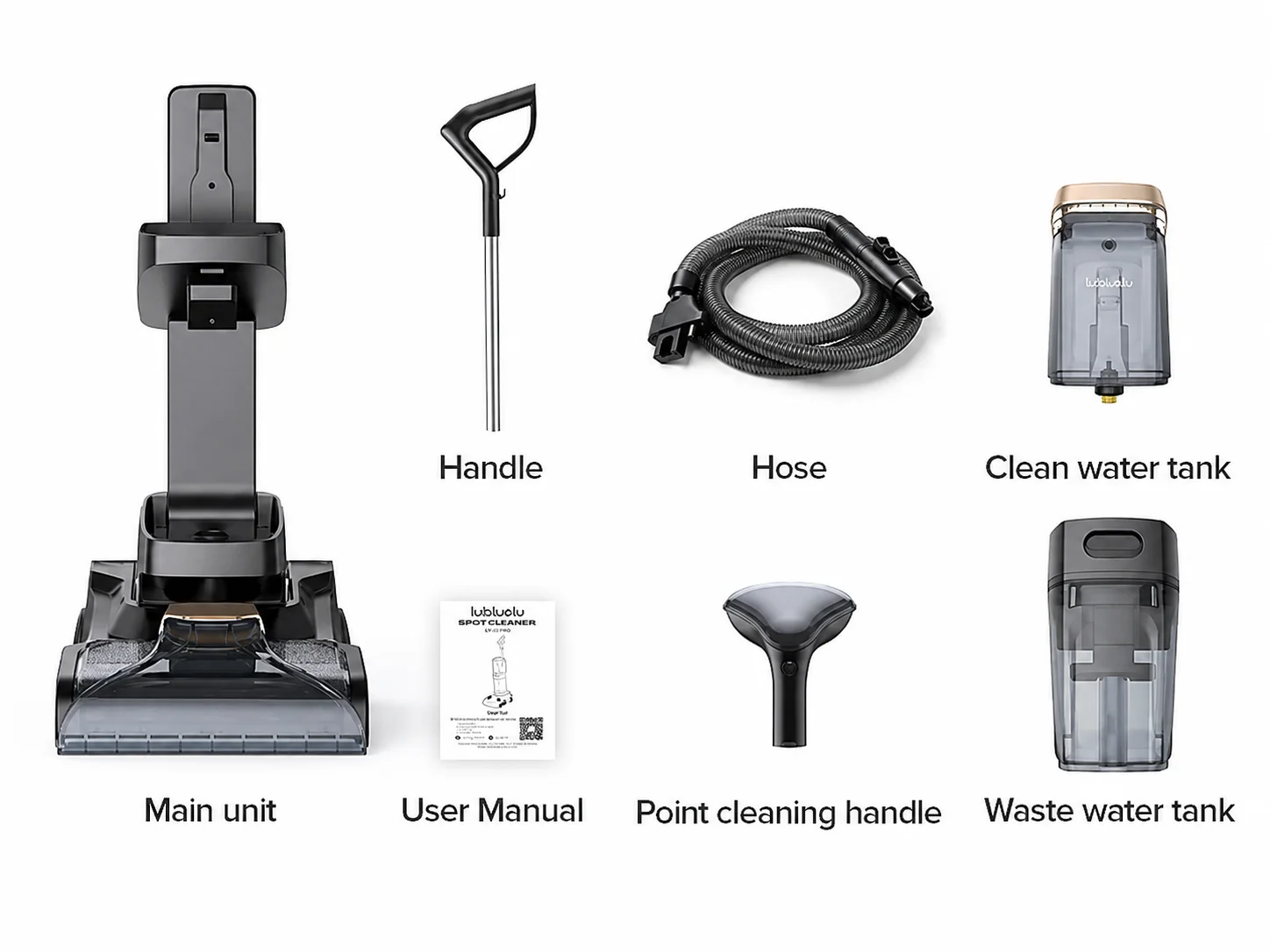

Core Retail Bundle
Included
- X3 Pro main unit
- Handle, hose and dual water tanks
- Upholstery cleaning tool
- User manual
Best for:
Value-focused distributor and entry-level retail programs.

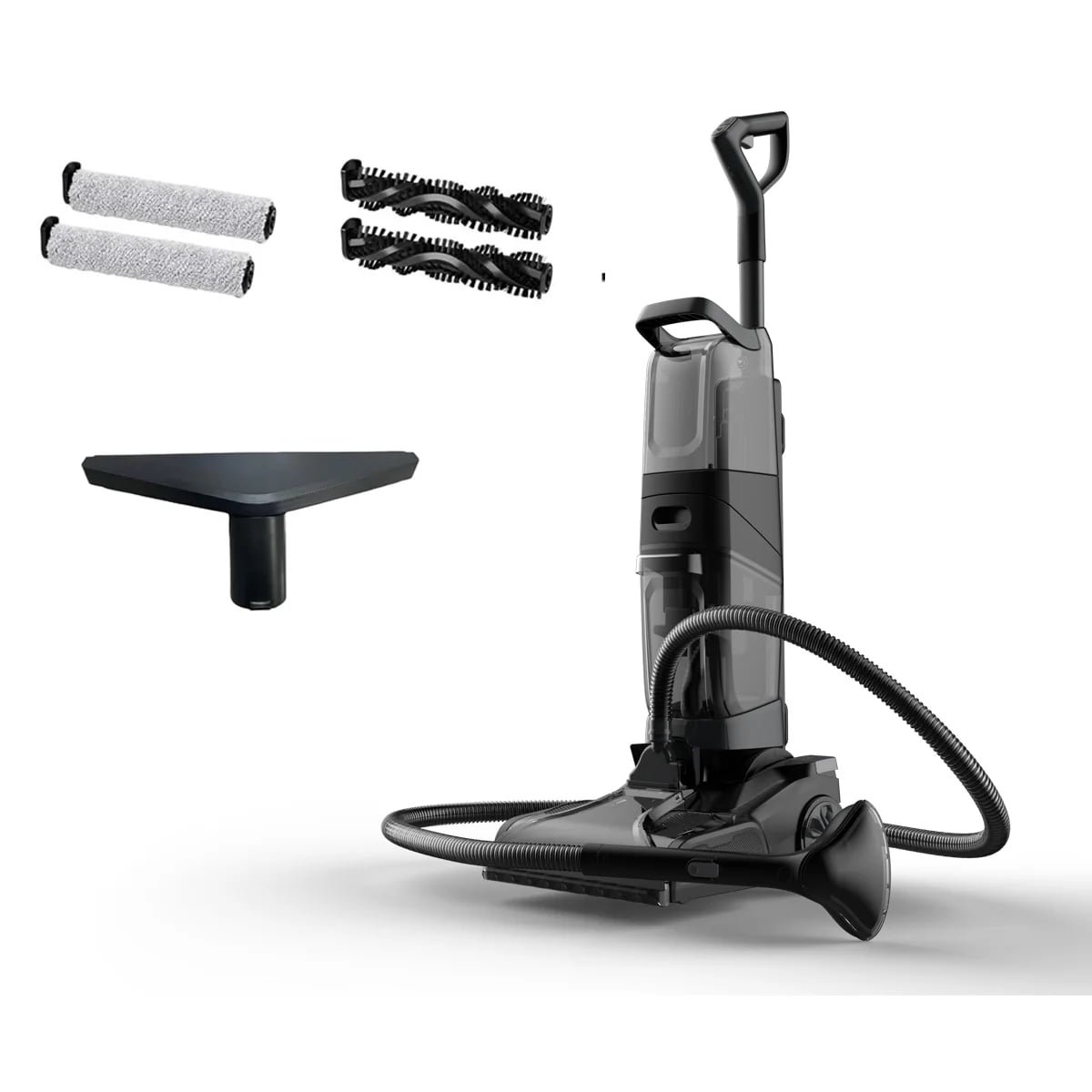

Complete Home Bundle
Included
- Everything in the Multi-Surface Bundle
- Window cleaning tool
Best for:
Premium retail and private-label programs seeking broader cleaning coverage and a higher-value retail proposition.
Additional Optional Accessories
Window cleaning tool, extension handle and shoe-cleaning brush are available for selected configurations.
Contact us to confirm compatibility, MOQ, pricing and packing details.
Share your target market, retail price and sales channel. We will recommend a configuration with MOQ, FOB pricing, packing details and container-loading data.
Sample & Mass Production Verification
Comprehensive quality control process ensuring every unit meets your specifications before shipment.
Approve What Will Be Mass Produced
Final confirmation of specifications, features, and quality standards before production begins.
Market and Compliance Requirements
Verification of regional certifications, safety standards, and market-specific regulations.
Configuration, BOM and Quotation
Complete bill of materials, component specifications, and finalized pricing structure.
Sample and Agreed Test Plan
Pre-production samples undergo comprehensive testing protocol agreed upon by both parties.
Golden Sample and Packaging Approval
Reference sample approval with finalized packaging design and branding elements.
Pilot or Mass-Production Inspection
On-site quality control during production run with real-time testing and documentation.
Pre-Shipment Document Pack
Your procurement pack can include the specification, accessory list, test-report list, packaging dimensions, loading data and spare-parts proposal.
LY-X3 PRO Technical Data
Comprehensive technical specifications and compliance documentation
| Parameter | Specification | Unit |
|---|---|---|
| Rated Power | 1000 | W |
| Rated Voltage | 220-240 / 100-127 | V |
| Rated Frequency | 50 / 60 | Hz |
| Suction Power | 17-18 | kPa |
| Clean Water Tank Capacity | 4 | L |
| Dirty Water Tank Capacity | 1.4 | L |
| Heating Power | 1200 | W |
| Heat-Up Time | 45 | s |
| Working Temperature | 60 | °C |
| Cable Length | 6 | m |
| Brush Head Width | 280 | mm |
| Product Dimensions (L×W×H) | 442(L)*325(W)*1143(H) | mm |
| Net Weight | 8.2 | kg |
| Noise Level | ≤ 91 | dB(A) |
Compliance Documentation
Matched to the Final Configuration -- Documentation is available for CE, EMC, LVD, RoHS, CB and PAH. Exact applicability is confirmed against the final model, voltage, plug and market configuration.
CE (EMC + LVD)
Model: LY-X3 PRO
Voltage: 220-240V / 100-127V
Lab: TÜV Rheinland
RoHS
Model: LY-X3 PRO
Voltage: All variants
Lab: SGS
CB Scheme
Model: LY-X3 PRO
Voltage: 220-240V / 100-127V
Lab: Intertek
PAH
Model: LY-X3 PRO
Voltage: All variants
Lab: TÜV SÜD
GS Mark
Model: LY-X3 PRO
Voltage: 220-240V
Lab: TÜV Rheinland
REACH
Model: LY-X3 PRO
Voltage: All variants
Lab: SGS
Download Specification & Compliance List
Access detailed technical specifications and complete compliance documentation package for LY-X3 PRO. All documents are verified and up-to-date.
From Incoming Parts to Packed Units
Product consistency is controlled through incoming inspection, assembly checks, performance testing, final inspection and packaging verification.
Motor & Heater Inspection
Incoming component verification including 300-hour motor bench testing and heater element quality control
Steam & Suction Testing
Performance validation of steam output temperature, pressure consistency, and suction power under load
Water-Path & Leakage Check
Pressure testing of water circulation system, seal integrity verification, and anti-leak validation
Brush and Clutch Verification
Rotating brush RPM measurement, clutch engagement testing, and mechanical durability checks
Final Appearance & Accessory Check
Cosmetic defect screening, control panel functionality test, and complete accessory kit verification
Packaging & Loading Verification
Protective packaging inspection, carton drop testing, and shipping documentation compliance check
OEM & Private Label Services
Three-phase project execution workflow from configuration to validation
Product Configuration
Color & Finish
Power Adapter
Accessories
Cleaning Modes
Packaging Design
Brand Implementation
Logo Application
Control Panel Design
Rating Label
Gift Box
User Manual
Warranty Card
Project Validation
Sample Production
Specification Approval
Packaging Proof
Pilot Production
Final Inspection
Ready to Build Your Custom Carpet Cleaner?
Schedule a free consultation with our OEM specialists. We'll help you design a product that fits your market and budget.
Start Your OEM ProjectProfessional Steam Carpet Cleaner Buying Guide
Everything procurement managers need to know before selecting a commercial carpet cleaning system
What is a Steam Carpet Cleaner?
A steam carpet cleaner, also known as a carpet extractor or hot water extraction system, is a professional cleaning machine that injects hot water or steam mixed with cleaning solution deep into carpet fibers, then immediately extracts the dirty water using powerful suction. Unlike traditional vacuum cleaners that only remove surface debris, steam carpet cleaners provide deep sanitization by reaching embedded dirt, bacteria, allergens, and stains that accumulate over time in commercial carpeting.
Key Performance Metrics to Evaluate
1. Suction Power (kPa or Air Watts)
Suction strength directly impacts drying time and cleaning effectiveness. Commercial-grade units should offer 18-25 kPa. Higher suction removes more moisture, reducing drying time from 6-8 hours to 2-4 hours, minimizing business disruption and preventing mold growth.
2. Steam Temperature & Pressure
Professional steam cleaners should reach 140-160°C at 3-5 bar pressure. This temperature range kills 99.9% of bacteria, dust mites, and viruses without chemicals, meeting healthcare and food service sanitation requirements.
3. Tank Capacity vs Equipment Weight
Larger tanks (6-12L clean water) enable longer cleaning sessions but increase equipment weight. Consider your operators' physical capabilities and whether they'll be transporting equipment up stairs. The ideal ratio is 30-45 minutes of cleaning time per fill without exceeding 15kg total weight when full.
4. Motor Durability & Warranty
Commercial motors should be rated for 2,000-5,000+ hours of operation. Check if the motor has thermal overload protection and whether brushes are replaceable. Warranty length indicates manufacturer confidence--look for minimum 2-year coverage on motor and pump components.
5. Noise Level (dB Rating)
Critical for daytime cleaning in occupied spaces. Units operating below 65dB allow cleaning during business hours without disrupting offices, hotels, or retail environments. Budget models often run at 75-85dB, restricting you to after-hours cleaning only.
Total Cost of Ownership Calculation
Smart buyers look beyond unit price:
- Consumables: Filter replacement frequency and cost. Cheap units may have proprietary filters at inflated prices.
- Energy efficiency: 1500W unit running 4 hours daily costs ~$200/year in electricity vs 800W unit at ~$110/year.
- Downtime costs: If equipment breaks during peak season, rental costs and lost revenue far exceed initial savings from buying cheap.
- Spare parts availability: Can you source replacement parts locally or do you need to wait weeks for international shipping?
Certifications & Compliance
Required certifications vary by target market:
- CE (Europe): Mandatory for EU sales. Covers electromagnetic compatibility and electrical safety.
- UL/ETL (North America): Required by many insurance companies and building codes.
- RoHS: Restricts hazardous substances--increasingly required globally.
- ISO 9001 (Manufacturer): Indicates consistent quality control systems in production.
Supplier Selection Criteria
Beyond product specs, evaluate your manufacturing partner:
- Production capacity: Can they scale if your demand grows 3x? What's their current capacity utilization?
- In-house capabilities: Vertically integrated suppliers control quality better than assembly-only operations relying on third-party components.
- Communication & support: Do they have English-speaking project managers? Can you visit the factory? How quickly do they respond to technical questions?
- Track record: Ask for references from existing customers in your region or industry. Check export history and customer retention rate.
Manufacturing Excellence
Witness our vertically integrated production and quality control capabilities
Frequently Asked Questions
Common questions from buyers and distributors
Is the LY-X3 PRO a true steam carpet cleaner or a hot-water carpet washer?
Where is the 100°C steam temperature measured?
What is included in the standard configuration?
Can the machine clean hard floors?
What is the MOQ and 40'HQ loading quantity?
Which compliance documents are available for the final configuration?
What can be customized for private-label projects?
What warranty, spare-parts ratio and spare-parts supply period are available?
Looking for an OEM Upright Steam Carpet Cleaner?
Tell us your target country, sales channel and expected order quantity. We will recommend the suitable configuration, certification plan and sample solution.
